Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API,ISO,QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: D/P, T/T
Supply Ability: 1000 SETS/MONTH
Standard: |
API |
Material: |
Alloy Steel |
Type: |
Sucker Rod Pump |
Color: |
Customized |
Use: |
Oil Production |
Certification: |
API 11AX |
Standard: |
API |
Material: |
Alloy Steel |
Type: |
Sucker Rod Pump |
Color: |
Customized |
Use: |
Oil Production |
Certification: |
API 11AX |
Alloy Steel Material Well Pump Tubing 20-150RHBM-16-4-2-2 With Pump Barrel
Product Description:
After being assemblied on the surface, the rod pump is run into the well and seated inside the seating nipple. There is no need to lift the tubing, which reduces operation time and cost, frequency of turning on and off tubing threads, and prolongs run life of the tubings.

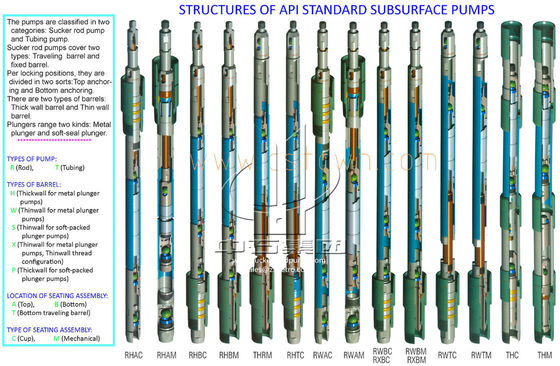

The rod pump can be classified into mechanical type(M) and cup type(C) according to the tupe of seating assembly. Also it is divided into three types as RHA(stationary heavy well barrel top anchor rod pump), RHB(stationary heavy well barrel bottom anchor rod pump) and RHT(travelling heavy well barrel bottom anchor rod pump), depending where the seating assembly is positioned.
Technical parameter
| Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Tubing size EUE(in) |
| 15-106RHBM | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 1.9” |
| 20-125RHBM | Ø31.75 | 2-3/8” | |||
| 25-150RHBM | Ø38.10 | 2-7/8” | |||
| 25-175RHBM | Ø44.45 | 2-7/8” | |||
| 30-225RHBM | Ø57.15 | 3-1/2” |
Features
1. Safety, environmental protection and energy saving.
2. Large translating, pumping sand size range.
3. Equipped with punch, reduce the operation cost.
4. Reasonable structure and long service life.
