Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT, ISO, QHSE
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1 metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Standard: |
API Standard |
Class: |
PSL1 PSL2 |
Steel Grade: |
J55, K55 |
Processing: |
Hot-rolled |
Application: |
Oil Industry |
Structure: |
Seamless |
Standard: |
API Standard |
Class: |
PSL1 PSL2 |
Steel Grade: |
J55, K55 |
Processing: |
Hot-rolled |
Application: |
Oil Industry |
Structure: |
Seamless |

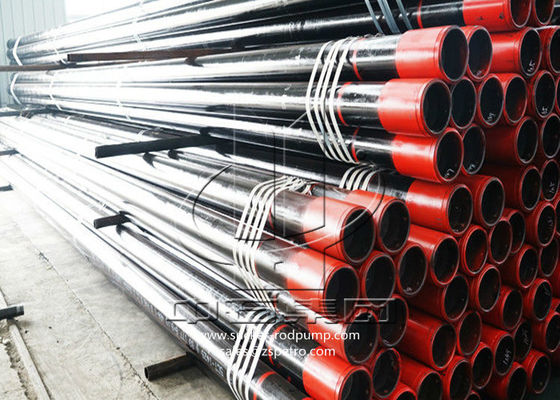

Oil Country Tubulars Seamless Casing Pipe For Well Wall Supporting Drilling Process And After Completion
Oil casing pipe descriptions:
Casing pipe is the major structural component of a well. The API 5CT Casing pipe is a large-diameter
steel pipe that serves as the structural retainer for the walls of oil and gas wells, and typically held into
place with cement.
API 5CT casing is inserted into a well bore and cemented in place to protect both subsurface formations
and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place.
The cost of casing is a major part of the overall well cost, so selection of casing size, grade, connectors,
and setting depth is a primary engineering and economic consideration.
Features:
1. OD: 114.3MM -508MM(4 1/2"--20") Wall thickness: 5.21MM-16.13MM(9.5PPF--133PPF)
2. Steel grades: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
3. Standard: API 5CT, GB, ISO11960, GOST
4. Connections: STC, LTC, BTC, XC and Premium connection
5. Length: R1, R2, R3
6. Inspection: NDT etc related rules of API 5CT and 5B
Technical specification:
| Sizes | OD D mm |
Weight kg/m |
WT t mm |
Type of end | ||||||||
| H40 | J55 K55 |
M65 | L80 C95 |
N80 1,Q |
C90 T95 |
P110 | Q125 | |||||
| 1 | 2 | |||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| 4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 |
9.50 10.50 11.60 13.50 15.10 |
114.30 114.30 114.30 114.30 114.30 |
14.14 15.63 17.26 20.09 22.47 |
5.21 5.69 6.35 7.37 8.56 |
PS - - - - |
PS PSB PSLB - - |
PS PSB PLB PLB - |
- - PLB PLB - |
- - PLB PLB - |
- - PLB PLB - |
- - PLB PLB PLB |
- - - - PLB |
| 5 5 5 5 5 5 5 |
11.50 13.00 15.00 18.00 21.40 23.20 24.10 |
127.00 127.00 127.00 127.00 127.00 127.00 127.00 |
17.11 19.35 22.32 26.79 31.85 34.53 35.86 |
5.59 6.43 7.52 9.19 11.10 12.14 12.70 |
- - - - - - - |
PS PSLB PSLBE - - - - |
PS PSLB PLB PLB PLB - - |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - - PLBE PLB PLB PLB |
| 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 |
14.00 15.50 17.00 20.00 23.00 26.80 29.70 32.60 35.30 38.00 40.50 43.10 |
139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 |
20.83 23.07 25.30 29.76 34.23 39.88 44.20 48.51 52.53 56.55 60.27 64.14 |
6.20 6.98 7.72 9.17 10.54 12.70 14.27 15.88 17.45 19.05 20.62 22.22 |
PS - - - - - - - - - - - |
PS PSLBE PSLBE - - - - - - - - - |
PS PSLB PLB PLB PLB - - - - - - - |
- - PLBE PLBE PLBE - - - - - - - |
- - PLBE PLBE PLBE - - - - - - - |
- - PLBE PLBE PLBE P P P P P P P |
- - PLBE PLBE PLBE - - - - - - - |
- - - - PLBE - - - - - - - |
| 6-5/8 6-5/8 6-5/8 6-5/8 |
20.00 24.00 28.00 32.00 |
168.28 168.28 168.28 168.28 |
29.76 35.72 41.67 47.62 |
7.32 8.94 10.59 12.06 |
PS - - - |
PSLB PSLBE - - |
PSLB PLB PLB - |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- - - PLBE |
| 7 7 7 7 7 7 7 |
17.00 20.00 23.00 26.00 29.00 32.00 35.00 |
177.80 177.80 177.80 177.80 177.80 177.80 177.80 |
25.30 29.76 34.23 38.69 43.16 47.62 52.09 |
5.87 6.91 8.05 9.19 10.36 11.51 12.65 |
PS PS - - - - - |
- PS PSLBE PSLBE - - - |
- PS PLB PLB PLB PLB - |
- - PLBE PLBE PLBE PLBE PLBE |
- - PLBE PLBE PLBE PLBE PLBE |
- - PLBE PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - - - - PLBE |
| 7 7 7 7 7 7 |
38.00 42.70 46.40 50.10 53.60 57.10 |
177.80 177.80 177.80 177.80 177.80 177.80 |
56.55 63.54 69.05 74.56 79.77 84.97 |
13.72 15.88 17.45 19.05 20.62 22.22 |
- - - - - - |
- - - - - - |
- - - - - - |
PLBE - - - - - |
PLBE - - - - - |
PLBE P P P P P |
PLBE - - - - - |
PLBE - - - - - |
| 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 |
24.00 26.40 29.70 33.70 39.00 42.80 45.30 47.10 51.20 55.30 |
193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 |
35.72 39.29 44.20 50.15 58.04 63.69 67.41 70.09 76.19 82.30 |
7.62 8.33 9.52 10.92 12.70 14.27 15.11 15.88 17.45 19.05 |
PS - - - - - - - - - |
- PSLBE - - - - - - - - |
- PSLB PLB PLB - - - - - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB P P |
- - PLBE PLBE PLBE PLB PLB PLB - - |
- - - - PLBE PLB PLB PLB - - |
| 7-3/4 | 46.10 | 196.85 | 68.60 | 15.11 | - | - | - | P | P | P | P | P |
| 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 |
24.00 28.00 32.00 36.00 40.00 44.00 49.00 |
219.08 219.08 219.08 219.08 219.08 219.08 219.08 |
35.72 41.67 47.62 53.57 59.53 65.48 72.92 |
6.71 7.72 8.94 10.16 11.43 12.70 14.15 |
- PS PS - - - - |
PS - PSLBE PSLBE - - - |
PS PS PSLB PSLB PLB - - |
- - - PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - - PLBE PLBE PLBE |
- - - - - PLBE |
| 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 |
32.30 36.00 40.00 43.50 47.00 53.50 58.40 59.40 64.90 70.30 75.60 |
244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 |
48.07 53.57 59.53 64.73 69.94 79.62 86.91 88.40 96.58 104.62 112.50 |
7.92 8.94 10.03 11.05 11.99 13.84 15.11 15.47 17.07 18.64 20.24 |
PS PS - - - - - - - - - |
- PSLB PSLBE - - - - - - - - |
- PSLB PSLB PLB PLB - - - - - |
- - PLBE PLBE PLBE PLBE PLB - - - - |
- - PLBE PLBE PLBE PLBE PLB - - - - |
- - PLBE PLBE PLBE PLBE PLB P P P P |
- - - PLBE PLBE PLBE PLB - - - - |
- - - - PLBE PLBE PLB - - - - |
| 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 |
32.75 40.50 45.50 51.00 55.50 60.70 65.70 |
273.05 273.05 273.05 273.05 273.05 273.05 273.05 |
48.74 60.27 67.71 75.90 82.59 90.33 97.77 |
7.09 8.89 10.16 11.43 12.57 13.84 15.11 |
PS PS - - - - - |
- PSB PSBE PSBE - - - |
- PSB PSB PSB PSB - - |
- - - PSBE PSBE - - |
- - - PSBE PSBE - - |
- - - PSBE PSBE PSBE PSB |
- - - PSBE PSBE PSBE PSB |
- - - - - PSBE PSB |
| 10-3/4 10-3/4 10-3/4 |
73.20 79.20 85.30 |
273.05 273.05 273.05 |
108.93 117.86 126.94 |
17.07 18.64 20.24 |
- - - |
- - - |
- - - |
- - - |
- - - |
P P P |
- - - |
- - - |
| 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 |
42.00 47.00 54.00 60.00 65.00 71.00 |
298.45 298.45 298.45 298.45 298.45 298.45 |
62.50 69.94 80.36 89.29 96.73 105.66 |
8.46 9.53 11.05 12.42 13.56 14.78 |
PS - - - - - |
- PSB PSB PSB - - |
- PSB PSB PSB - - |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
| 13-3/8 13-3/8 13-3/8 13-3/8 13-3/8 |
48.00 54.50 61.00 68.00 72.00 |
339.72 339.72 339.72 339.72 339.72 |
71.43 81.10 90.78 101.19 107.15 |
8.38 9.65 10.92 12.19 13.06 |
PS - - - - |
- PSB PSB PSB - |
- PSB PSB PSB - |
- - - PSB PSB |
- - - PSB PSB |
- - - PSB PSB |
- - - PSB PSB |
- - - - PSB |
| 16 16 16 16 |
65.00 75.00 84.00 109.00 |
406.40 406.40 406.40 406.40 |
96.73 111.61 125.01 162.21 |
9.53 11.13 12.57 16.66 |
PS - - - |
- PSB PSB P |
- PSB PSB - |
- - - P |
- - - P |
- - - - |
- - - P |
- - - P |
| 18-5/8 | 87.50 | 473.08 | 130.21 | 11.05 | PS | PSB | PSB | - | - | - | - | - |
| 20 20 20 |
94.00 106.50 133.00 |
508.00 508.00 508.00 |
139.89 158.49 197.93 |
11.13 12.70 16.13 |
PSL - - |
PSLB PSLB PSLB |
PSLB PSLB - |
- - - |
- - - |
- - - |
- - - |
- - - |
| Remarks: P——Plain end;S—Short round thread;L—Long round thread;B—Buttress thread;E—Extreme-line. | ||||||||||||
Note: other premium connection shall be provided as per customer requirements.
