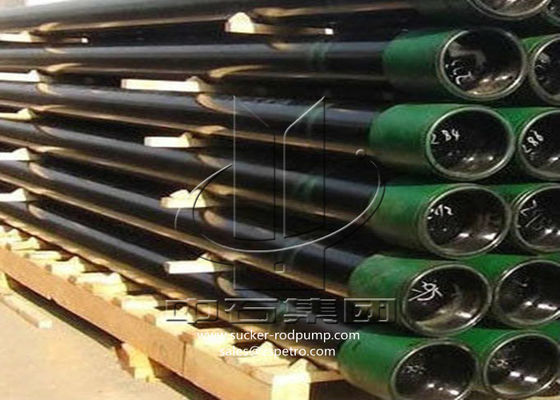

Api 5ct J55 Seamless Casing Pipe Oil Painting Surface Treatment R3 Length

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API 5CT, ISO, QHSE

Model Number: 4 1/2"-20"

Payment & Shipping Terms

Minimum Order Quantity: 1 metric ton

Price: Negotiable

Packaging Details: Be bundled by steel strap

Payment Terms: T/T, L/C

Get Best Price
High Light:

seamless steel casing pipes

,

seamless drill pipe

Standard:
API Standard
Technique:
Hot-rolled
Steel Grade:
J55, K55, N80, L80, P110, L80-13Cr, P110-13Cr
Structure:
Seamless Pipe
Surface Treatment:
Oil Painting
Production Standard:
PSL1
Standard:
API Standard
Technique:
Hot-rolled
Steel Grade:
J55, K55, N80, L80, P110, L80-13Cr, P110-13Cr
Structure:
Seamless Pipe
Surface Treatment:
Oil Painting
Production Standard:
PSL1
Api 5ct J55 Seamless Casing Pipe Oil Painting Surface Treatment R3 Length

API 5CT J55 Seamless Casing Pipe Used In Oilfield Drilling Project Large Quantity

Oil casing pipe:



Casing pipe is the steel pipe to support the wall of oil & gas wells, which falls into surface casing, protective

casing and production casing.

Once a well has been drilled, if it is to become a production well, the well must undergo completion. While
drilling a well cuts through the rock formations and allows drilling engineers to reach the reservoir below,
the raw sides of the well cannot support themselves. casing is set inside the drilled well to protect and
support the wellstream.



Features:



1. Specification range:OD: 4 1/2"-20"
2. Steel grade: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
3. Thread connection: NU, EU,IJ
4. Length: R3
5. Testing: NDT etc related rules of API 5CT and 5B
6: Structure type:Seamless pipe



Technical specification of casing pipe:



Size

Linear Mass

lb/ft

Outside Diameter Wall Thickness Type of end-finish
inch mm inch mm Grade
J-55 K-55 M-65 L-80 C-95 N-80 1,Q P-110
4 1/2'' 9.5 4.5 114.3 0.205 5.21 PS PS - - -
10.5 4.5 114.3 0.224 5.69 PSB PSB - - -
11.6 4.5 114.3 0.25 6.35 PSLB PLB PLB PLB PLB
13.5 4.5 114.3 0.29 7.37 -- PLB PLB PLB PLB
15.1 4.5 114.3 0.337 8.56 -- - - - PLB
5'' 11.5 5 127 0.22 5.59 PS PS - - -
13 5 127 0.253 6.43 PSLB PSLB - - -
15 5 127 0.296 7.52 PSLB PLB PLB PLB PLB
18 5 127 0.362 9.19 -- PLB PLB PLB PLB
21.4 5 127 0.437 11.1 -- PLB PLB PLB PLB
23.2 5 127 0.478 12.14 -- - PLB PLB PLB
24.1 5 127 0.5 12.7 -- - PLB PLB PLB
5 1/2'' 14 5.5 139.7 0.244 6.2 PS PS - - -
15.5 5.5 139.7 0.275 6.98 PSLB PSLB - - -
17 5.5 139.7 0.304 7.72 PSLB PLB PLB PLB PLB
20 5.5 139.7 0.361 9.17 -- PLB PLB PLB PLB
23 5.5 139.7 0.415 10.54 -- PLB PLB PLB PLB
26.8 5.5 139.7 0.5 12.7 -- - - - -
29.7 5.5 139.7 0.562 14.27 -- - - - -
32.6 5.5 139.7 0.625 15.87 -- - - - -
35.3 5.5 139.7 0.687 17.45 -- - - - -
38 5.5 139.7 0.75 19.05 -- - - - -
40.5 5.5 139.7 0.812 20.62 -- - - - -
43.1 5.5 139.7 0.875 22.23 -- - - - -
6 5/8'' 20 6.625 168.28 0.288 7.32 PSLB PSLB - - -
24 6.625 168.28 0.352 8.94 PSLB PLB PLB PLB PLB
28 6.625 168.28 0.417 10.59 -- PLB PLB PLB PLB
32 6.625 168.28 0.475 12.06 -- -- PLB PLB PLB
7 3/4'' 46.1 8.625 219.08 0.595 15.11 - - P P P
8 5/8'' 24 8.625 219.08 0.264 6.71 PS PS - - -
28 8.625 219.08 0.304 7.72 - PS - - -
32 8.625 219.08 0.352 8.94 PSLB PSLB - - -
36 8.625 219.08 0.4 10.16 PSLB PSLB PLB PLB PSLB
8.625 219.08 0.45 11.43 - PLB PLB PLB PLB -
44 8.625 219.08 0.5 12.7 - - PLB PLB PLB
49 9.625 244.28 0.557 14.15 - - PLB PLB -
9 5/8'' 32.3 9.625 244.48 0.312 7.92 - - - - -
36 9.625 244.48 0.352 8.94 PSLB PSLB - - -
40 9.625 244.48 0.395 10.03 PSLB PSLB PLB PLB PLB
43.5 9.625 244.48 0.435 11.05 - PLB PLB PLB PLB
47 9.625 244.48 0.472 11.99 - PLB PLB PLB PLB
53.5 9.625 244.48 0.545 13.84 - - PLB PLB PLB
58.4 9.625 244.48 0.595 15.11 - - PLB PLB -
59.4 9.625 244.48 0.609 15.57 - - - - -
64.9 9.625 244.48 0.672 17.07 - - - - -
70.3 9.625 244.48 0.734 18.64 - - - - -
75.6 9.625 244.48 0.797 20.24 - - - - -
10 3/4'' 32.75 10.75 273.05 0.279 7.09 - - - - -
40.5 10.75 273.05 0.35 8.89 PSB PSB - - -
45.5 10.75 273.05 0.4 10.16 PSB PSB - - -
51 10.75 273.05 0.45 11.43 PSB PSB PSB PSB PSB
55.5 10.75 273.05 0.468 12.57 - PSB PSB PSB PSB
60.7 10.75 273.05 0.545 13.84 - - - - PSB
65.7 10.75 273.05 0.595 15.11 - - - - PSB
73.2 10.75 273.05 0.672 17.07 - - - - -
79.2 10.75 273.05 0.734 18.64 - - - - -
85.3 10.75 273.05 0.797 20.24 - - - - -
11 3/4'' 42 11.75 298.45 0.333 8.46 - - - - -
47 11.75 298.45 0.375 9.53 PSB PSB - - -
54 11.75 298.45 0.435 11.05 PSB PSB - - -
65 11.75 298.45 0.534 13.56 - - P P P
71 11.75 298.45 0.582 14.78 - - P P P
13 3/8'' 48 13.375 339.73 0.33 8.38 - - - - -
54.5 13.375 339.73 0.38 9.65 PSB PSB - - -
61 13.375 339.73 0.43 10.92 PSB PSB - - -
68 13.375 339.73 0.48 12.19 PSB PSB PSB PSB PSB
72 13.375 339.73 0.514 13.06 - - PSB PSB PSB
18 5/8'' 87.5 18.625 473.08 0.435 11.05 PSB PSB - - -
20'' 94 20 508 0.438 11.13 PSLB PSLB - - -
106.5 20 508 0.5 12.7 PSLB PSLB - - -
133 20 508 0.635 16.13 PSLB - - - -
