Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: One metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: L/C, T/T
Structure: |
Seamless Pipe |
Steel Grade: |
J55, K55, L80, N80, P110 |
Threads: |
API Threads, Premium Threads |
API Standard: |
API 5CT |
Type: |
Alloy Steel Pipe |
Application: |
Oil Drilling |
Structure: |
Seamless Pipe |
Steel Grade: |
J55, K55, L80, N80, P110 |
Threads: |
API Threads, Premium Threads |
API Standard: |
API 5CT |
Type: |
Alloy Steel Pipe |
Application: |
Oil Drilling |

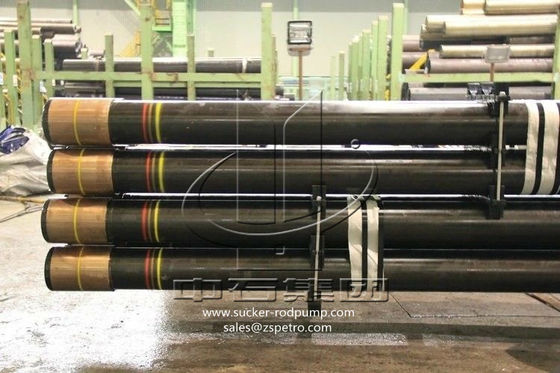

PSL1 PSL2 PSL3 Production Class Seamless Casing Pipe
Casing pipe description:
API 5CT casing is inserted into a well bore and cemented in place to protect both subsurface formations
and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place.
The cost of casing is a major part of the overall well cost, so selection of casing size, grade, connectors,
and setting depth is a primary engineering and economic consideration.
Features:
Technical specifications:
| Sizes | OD D mm |
Weight kg/m |
WT t mm |
Type of end | ||||||||
| H40 | J55 K55 |
M65 | L80 C95 |
N80 1,Q |
C90 T95 |
P110 | Q125 | |||||
| 1 | 2 | |||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| 4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 |
9.50 10.50 11.60 13.50 15.10 |
114.30 114.30 114.30 114.30 114.30 |
14.14 15.63 17.26 20.09 22.47 |
5.21 5.69 6.35 7.37 8.56 |
PS - - - - |
PS PSB PSLB - - |
PS PSB PLB PLB - |
- - PLB PLB - |
- - PLB PLB - |
- - PLB PLB - |
- - PLB PLB PLB |
- - - - PLB |
| 5 5 5 5 5 5 5 |
11.50 13.00 15.00 18.00 21.40 23.20 24.10 |
127.00 127.00 127.00 127.00 127.00 127.00 127.00 |
17.11 19.35 22.32 26.79 31.85 34.53 35.86 |
5.59 6.43 7.52 9.19 11.10 12.14 12.70 |
- - - - - - - |
PS PSLB PSLBE - - - - |
PS PSLB PLB PLB PLB - - |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - - PLBE PLB PLB PLB |
| 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 |
14.00 15.50 17.00 20.00 23.00 26.80 29.70 32.60 35.30 38.00 40.50 43.10 |
139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 |
20.83 23.07 25.30 29.76 34.23 39.88 44.20 48.51 52.53 56.55 60.27 64.14 |
6.20 6.98 7.72 9.17 10.54 12.70 14.27 15.88 17.45 19.05 20.62 22.22 |
PS - - - - - - - - - - - |
PS PSLBE PSLBE - - - - - - - - - |
PS PSLB PLB PLB PLB - - - - - - - |
- - PLBE PLBE PLBE - - - - - - - |
- - PLBE PLBE PLBE - - - - - - - |
- - PLBE PLBE PLBE P P P P P P P |
- - PLBE PLBE PLBE - - - - - - - |
- - - - PLBE - - - - - - - |
| 6-5/8 6-5/8 6-5/8 6-5/8 |
20.00 24.00 28.00 32.00 |
168.28 168.28 168.28 168.28 |
29.76 35.72 41.67 47.62 |
7.32 8.94 10.59 12.06 |
PS - - - |
PSLB PSLBE - - |
PSLB PLB PLB - |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- - - PLBE |
| 7 7 7 7 7 7 7 |
17.00 20.00 23.00 26.00 29.00 32.00 35.00 |
177.80 177.80 177.80 177.80 177.80 177.80 177.80 |
25.30 29.76 34.23 38.69 43.16 47.62 52.09 |
5.87 6.91 8.05 9.19 10.36 11.51 12.65 |
PS PS - - - - - |
- PS PSLBE PSLBE - - - |
- PS PLB PLB PLB PLB - |
- - PLBE PLBE PLBE PLBE PLBE |
- - PLBE PLBE PLBE PLBE PLBE |
- - PLBE PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - - - - PLBE |
| 7 7 7 7 7 7 |
38.00 42.70 46.40 50.10 53.60 57.10 |
177.80 177.80 177.80 177.80 177.80 177.80 |
56.55 63.54 69.05 74.56 79.77 84.97 |
13.72 15.88 17.45 19.05 20.62 22.22 |
- - - - - - |
- - - - - - |
- - - - - - |
PLBE - - - - - |
PLBE - - - - - |
PLBE P P P P P |
PLBE - - - - - |
PLBE - - - - - |
| 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 |
24.00 26.40 29.70 33.70 39.00 42.80 45.30 47.10 51.20 55.30 |
193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 |
35.72 39.29 44.20 50.15 58.04 63.69 67.41 70.09 76.19 82.30 |
7.62 8.33 9.52 10.92 12.70 14.27 15.11 15.88 17.45 19.05 |
PS - - - - - - - - - |
- PSLBE - - - - - - - - |
- PSLB PLB PLB - - - - - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB P P |
- - PLBE PLBE PLBE PLB PLB PLB - - |
- - - - PLBE PLB PLB PLB - - |
| 7-3/4 | 46.10 | 196.85 | 68.60 | 15.11 | - | - | - | P | P | P | P | P |
| 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 |
24.00 28.00 32.00 36.00 40.00 44.00 49.00 |
219.08 219.08 219.08 219.08 219.08 219.08 219.08 |
35.72 41.67 47.62 53.57 59.53 65.48 72.92 |
6.71 7.72 8.94 10.16 11.43 12.70 14.15 |
- PS PS - - - - |
PS - PSLBE PSLBE - - - |
PS PS PSLB PSLB PLB - - |
- - - PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - - PLBE PLBE PLBE |
- - - - - PLBE |
| 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 |
32.30 36.00 40.00 43.50 47.00 53.50 58.40 59.40 64.90 70.30 75.60 |
244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 |
48.07 53.57 59.53 64.73 69.94 79.62 86.91 88.40 96.58 104.62 112.50 |
7.92 8.94 10.03 11.05 11.99 13.84 15.11 15.47 17.07 18.64 20.24 |
PS PS - - - - - - - - - |
- PSLB PSLBE - - - - - - - - |
- PSLB PSLB PLB PLB - - - - - |
- - PLBE PLBE PLBE PLBE PLB - - - - |
- - PLBE PLBE PLBE PLBE PLB - - - - |
- - PLBE PLBE PLBE PLBE PLB P P P P |
- - - PLBE PLBE PLBE PLB - - - - |
- - - - PLBE PLBE PLB - - - - |
| 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 |
32.75 40.50 45.50 51.00 55.50 60.70 65.70 |
273.05 273.05 273.05 273.05 273.05 273.05 273.05 |
48.74 60.27 67.71 75.90 82.59 90.33 97.77 |
7.09 8.89 10.16 11.43 12.57 13.84 15.11 |
PS PS - - - - - |
- PSB PSBE PSBE - - - |
- PSB PSB PSB PSB - - |
- - - PSBE PSBE - - |
- - - PSBE PSBE - - |
- - - PSBE PSBE PSBE PSB |
- - - PSBE PSBE PSBE PSB |
- - - - - PSBE PSB |
| 10-3/4 10-3/4 10-3/4 |
73.20 79.20 85.30 |
273.05 273.05 273.05 |
108.93 117.86 126.94 |
17.07 18.64 20.24 |
- - - |
- - - |
- - - |
- - - |
- - - |
P P P |
- - - |
- - - |
| 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 |
42.00 47.00 54.00 60.00 65.00 71.00 |
298.45 298.45 298.45 298.45 298.45 298.45 |
62.50 69.94 80.36 89.29 96.73 105.66 |
8.46 9.53 11.05 12.42 13.56 14.78 |
PS - - - - - |
- PSB PSB PSB - - |
- PSB PSB PSB - - |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
| 13-3/8 13-3/8 13-3/8 13-3/8 13-3/8 |
48.00 54.50 61.00 68.00 72.00 |
339.72 339.72 339.72 339.72 339.72 |
71.43 81.10 90.78 101.19 107.15 |
8.38 9.65 10.92 12.19 13.06 |
PS - - - - |
- PSB PSB PSB - |
- PSB PSB PSB - |
- - - PSB PSB |
- - - PSB PSB |
- - - PSB PSB |
- - - PSB PSB |
- - - - PSB |
| 16 16 16 16 |
65.00 75.00 84.00 109.00 |
406.40 406.40 406.40 406.40 |
96.73 111.61 125.01 162.21 |
9.53 11.13 12.57 16.66 |
PS - - - |
- PSB PSB P |
- PSB PSB - |
- - - P |
- - - P |
- - - - |
- - - P |
- - - P |
| 18-5/8 | 87.50 | 473.08 | 130.21 | 11.05 | PS | PSB | PSB | - | - | - | - | - |
| 20 20 20 |
94.00 106.50 133.00 |
508.00 508.00 508.00 |
139.89 158.49 197.93 |
11.13 12.70 16.13 |
PSL - - |
PSLB PSLB PSLB |
PSLB PSLB - |
- - - |
- - - |
- - - |
- - - |
- - - |
| Remarks: P——Plain end;S—Short round thread;L—Long round thread;B—Buttress thread;E—Extreme-line. | ||||||||||||
Note: other premium connection shall be provided as per customer requirements.
