Product Details:
Payment & Shipping Terms:
|
| Type: | 25-175 THC 18-2-2 | Material: | Alloy Steel |
|---|---|---|---|
| Using: | Sucker Rod Pump ,downhole Pump | Standard: | API 11AX |
| Color: | Green Or Customized | Name: | Tubing Pump |
| High Light: | Steel Deep Well Pump,Barrel Deep Well Pump,Steel well submersible pump |
||

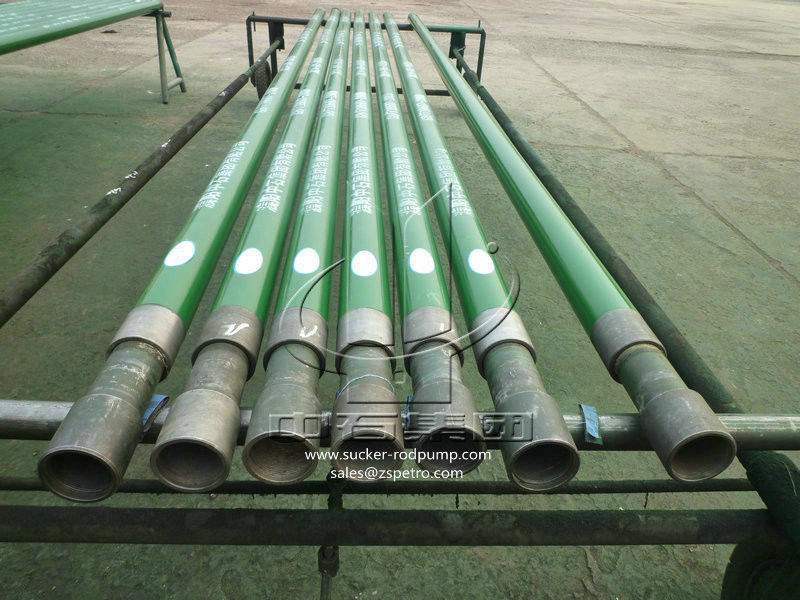

Alloy Steel Deep Well Pump With Chorme Plate Pump Barrel
Product description
The downhole sequence of the rod pump: the biggest difference between the rod pump and the tube pump is that the tube pump body is directly connected to the tubing string, and the rod pump is connected to the tubing string through a support joint, the rod pump The body is placed inside the tubing. When the well is down, the support joint is first lowered into the downhole target depth with the tubing string, and then the entire pump body (including the pump cylinder assembly and the plunger assembly) is pushed down with the sucker rod. At the joint, the force of the pumping unit and the gravity of the sucker rod itself act on the pump body, so that the pump body is inserted into the support joint to complete the supporting work.
Technical parameter list
| Model | mm(in) Nominal Dia. |
m(ft)Plunger Length |
Stroke m | m3/d Pump Constant |
Tubing And Thread |
In Sucker Rod |
| 20-125TH | 32(1.25) | 1.2-1.8 (4-6) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 20-125RHAC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 20-125RHBC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 20-125RHTC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 25-150RHAC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150RHBC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150RHTC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175RHAC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8 | ¾ | |
| 25-175RHBC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175RHTC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 27/8NU/EU | ¾ | |
| 30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3½NU/EU | 7/8 | |
| 30-225RHAC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 30-225RHBC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 30-225RHTC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 35-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4NU/EU | 7/8 | |
| 40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4½NU/EU | 1 |
Features
1. Safety, environmental protection and energy saving.
2. Large translating, pumping sand size range.
3. Equipped with punch, reduce the operation cost.
4. Reasonable structure and long service life.
