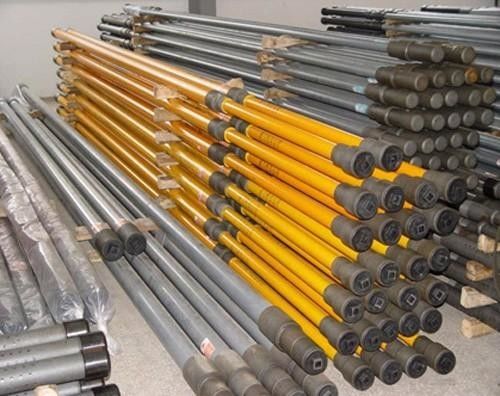

Oil Production 3/4" Down Hole Pump Long Carbon Steel Barrel

Large Image : Oil Production 3/4" Down Hole Pump Long Carbon Steel Barrel

Product Details:

Place of Origin:	China
Brand Name:	Zhongshi
Certification:	API, ISO, QHSE
Model Number:	Tubing pump

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard exported packing
Delivery Time:	50~60 workdays
Payment Terms:	L/C, D/P, T/T, Western Union, D/A
Supply Ability:	1000 SETS/MONTH

Contact Now

Detailed Product Description

Rod Pump Type:	Tubing Pump	Model:	THM THC
Industry:	Oil Production; Coalbed Gas	Barrel Material:	Carbon Steel
Plunger Material:	Carbon Steel	Application:	Oil Pumping
High Light:	3/4" Down Hole Pump , Oil Production Down Hole Pump , 3/4 inch SRP Pump

Long Carbon Steel Barrel Oil Production Well Tubing Pump

Carbon steel barrel tubing pump description:

Our usual barrel material is AISI 1045 carbon steel, with chrome plated coating or Nickel carbide coating.

API recognizes two main types of pumps: rod and tubing. Rod pumps also are called insert pumps because they are run (inserted) in the production tubing. Tubing pumps are so named because the working barrel of this pump is coupled with the production-tubing string.

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.

API tubing pump model: THBM, THBC

Features

1. Well tubing pump's capacity is large and durable.
2. Carbon steel barrel or brass material barrel

Technical parameter list

Specification	pump diameter(in)	Barrel length(ft)	Plunger length(ft)	stroke length(ft)	Tubing size EUE(in)	Sucker rod size
20-175THM	Ø44.45	7-34	1-26	4-29	2 3/8"	5/8" 3/4" 1"
25-225THM	Ø57.15				2 7/8"
30-275THM	Ø69.85				3 1/2"
40-375THM	Ø95.25				4 1/2"
