Well Drilling Subsurface Tubing Pump For Sucker Rods

Well Drilling Subsurface Tubing Pump For Sucker Rods
Well Drilling Subsurface Tubing Pump For Sucker Rods

Large Image :  Well Drilling Subsurface Tubing Pump For Sucker Rods

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: TH(B)M

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Machine Type: Pump Application: Oil Production
Other Name: Subsurface Pump Structure: Insert Pump
Barrel Coating: Nickel Carbide Base Material: AISI 1045 Carbon Steel
High Light:

Well Drilling Tubing Pump

,

Sucker Rods Subsurface Tubing Pump

,

Subsurface Oil Well Tubing

Well Driling Subsurface Tubing Pump For Sucker Rods



Subsurface tubing pump description:



API-TH,Tubingl, Heavy Wall Barrel, Tubing Pump



The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.



Operating principle of tubing pumps:The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problems arise,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost.



Technical specifications:



API Model mm(in)Nominal OD Plunger Length m(ft)

Stroke

(m)

Pump Constant (m3/d) Tubing And Thread

Sucker Rod

Size

20-125TH 32(1.25)

1.2-1.8

(4-6)

0.6-7.3 1.14 2⅜NU/EU ¾
25-125TH 32(1.25)   0.6-7.3 1.14 2⅞NU/EU ¾
20-150TH 38(1.50)   0.6-7.3 1.64 2⅜NU/EU ¾
25-150TH 38(1.50)   0.6-7.3 1.64 2⅞NU/EU ¾
20-175TH 44(1.75)   0.6-7.3 2.24 2⅜NU/EU ¾
25-175TH 44(1.75)   0.6-7.3 2.24 2⅞NU/EU ¾
25-225TH 57(2.25)   0.6-7.3 3.69 2⅞NU/EU ¾
30-275TH 70(2.75)   0.6-7.3 5.50 3½NU/EU
35-325TH 83(3.25)   0.6-7.3 7.70 4NU/EU
40-375TH 95(3.75)   0.6-7.3 10.26 4½NU/EU 1
































Pictures

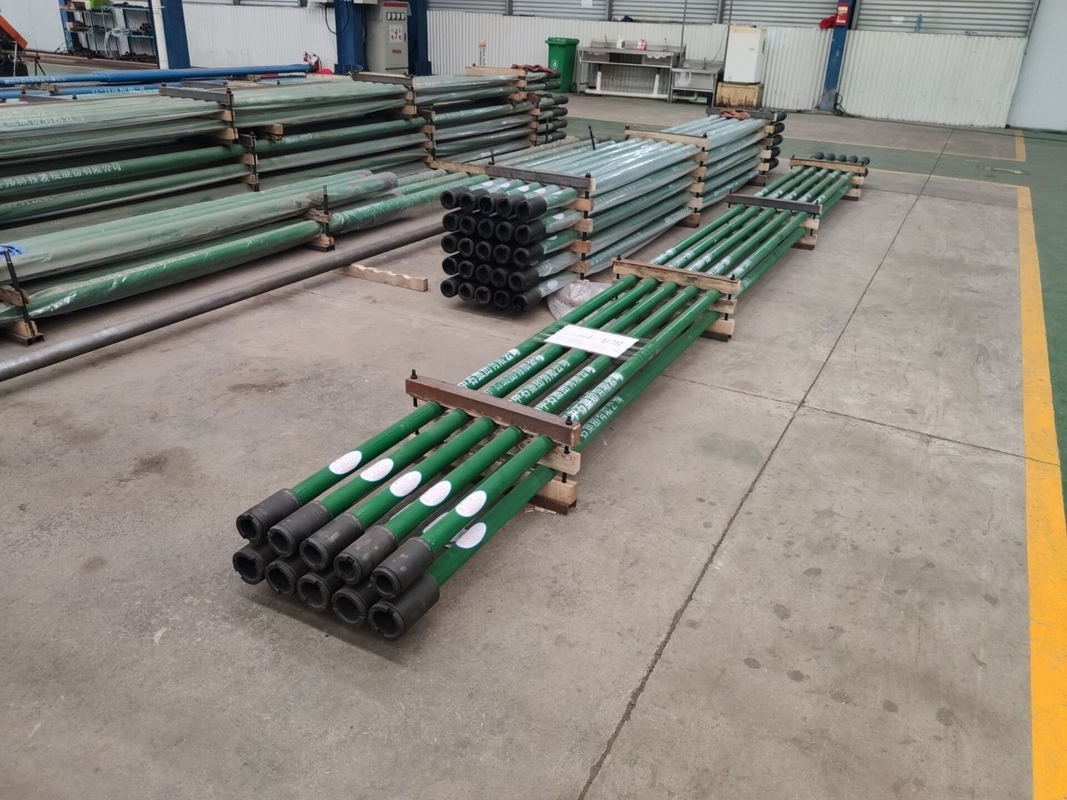

Well Drilling Subsurface Tubing Pump For Sucker Rods 0
