Carbon Steel Precision Oil Well Pump Tubing With Heavy Wall Barrel

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: TH(B)M

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Precision Tubing Pump Oil Well

,

Tube Well Pump Heavy Wall Barrel

,

Carbon Steel Oil Pump Precision Tubing

Rod Pump Type:
Tubing Pump
Barrel Type:
Heavy Walled
Barrel Material:
High Carbon Steel
Seating Type1:
Cup Seating
Seating Type2:
Mechanical Seating
Seating Location:
Bottom
Rod Pump Type:
Tubing Pump
Barrel Type:
Heavy Walled
Barrel Material:
High Carbon Steel
Seating Type1:
Cup Seating
Seating Type2:
Mechanical Seating
Seating Location:
Bottom
Carbon Steel Precision Oil Well Pump Tubing With Heavy Wall Barrel

Oil Well Precision Tubing Pump With Heavy Wall Barrel

Precision heavy wall barrel tubing Pump description:

Tubing pump API code explanation: API-TH,Tubingl, Heavy Wall Barrel, Tubing Pump

Tubing Pump is also called pipe type pump,the feature is that assemble the outer cylinder liner,the bush and the suction valve well on the ground,and connect at the bottom of the oil,into the wells,then use the sucker rod pump through tubing to put the piston is provided with a discharge valve into the pump.



The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.

API downhole pump technical table

  Downhole pump technical Specifications
Pump type Pump OD(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Tubing thread(in)
Rod pumps 31.8

2.1
2.4
2.7

3.0
3.3
3.6
3.9
4.2
4.5
4.8
5.7
6.0
6.6
7.3
9.1

1.5-6 0.3
0.6
0.9
2 3/8
  38.1       2 7/8
  44.45       2 7/8
Tubing
pump
31.8   1.5-7.8

0.3
0.6
0.9

2 3/8
  38.1       2 7/8
  44.45       2 7/8
  57.15       2 7/8
  69.85       2 7/8 3 1/2
  82.55       3 1/2
  95.25       3 1/2

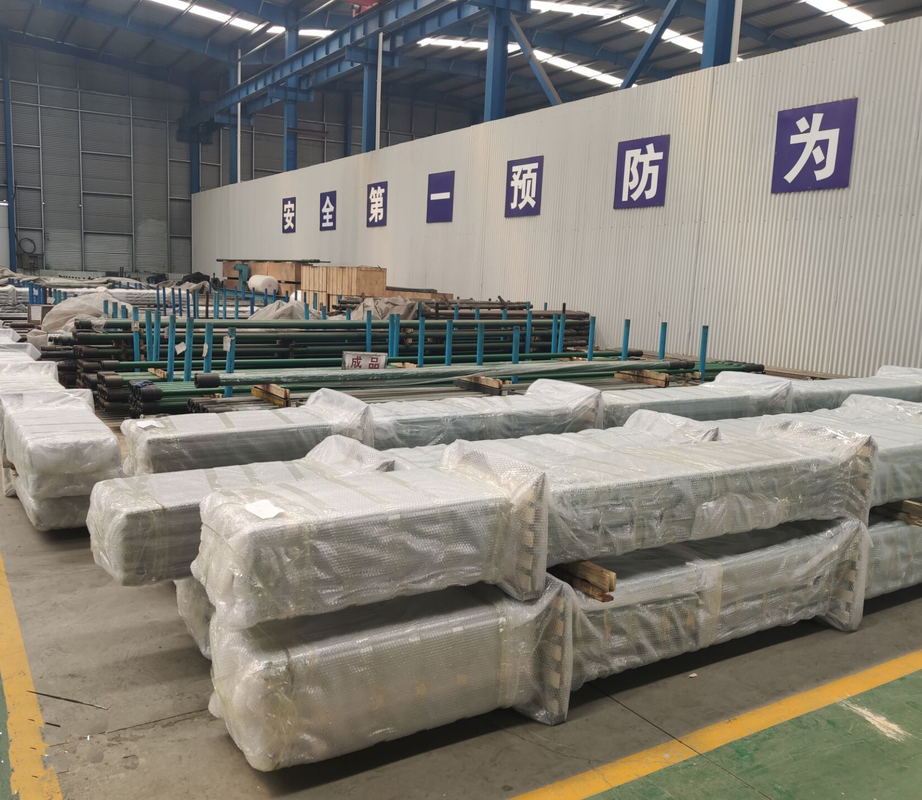

Inspection photo:

Carbon Steel Precision Oil Well Pump Tubing With Heavy Wall Barrel 0
