Mechanical Bottom Anchor Well Pump Tubing Chrome Plated

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API ,ISO ,QHSE

Model Number: Tubing Pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Chrome Plated Tube Well Pump

,

Bottom Anchor Tube Well Submersible Pump

,

Mechanical Submersible Tube Well Water Pump

Model:
THBM And THBC
Type:
Tubing Pump
Seating Location:
Bottom
Barrel Coating:
Chrome Plated
Barrel Material:
High Carbon Steel AISI 1045
Valve Ball And Seat:
Tungsten Carbide
Model:
THBM And THBC
Type:
Tubing Pump
Seating Location:
Bottom
Barrel Coating:
Chrome Plated
Barrel Material:
High Carbon Steel AISI 1045
Valve Ball And Seat:
Tungsten Carbide
Mechanical Bottom Anchor Well Pump Tubing Chrome Plated

Mechanical Bottom Anchor Well Tubing Pump With Long Service Life



Mechanical Bottom Anchor Well Tubing Pump description:



The seating location for oil well tubing pump is bottom location

Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher.

For some large production wells, larger bore of tubing pump can be worked if the on-off connector is installed. Tubing pump is the strongest pump. It has large flowing area for fluid and it is suitable for producing viscosity oil.



In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.





Well tubing pump technical parameter table:



Pump model Pump OD(in) Length of Plunger (mm) Range of Stroke (mm) Pump Constant (m3/d) Size of matched tubing (in) Size of connecting Sucker Rod(mm) Length of extension Coupling
25-125 1.25 600-1200 600-1200 1.14 2-1/2 2-7/8 16 300-900
25-150 1.5 1.642 2-1/2 2-7/8 16
25-175 1.75 2.235 2-1/2 2-7/8 16
20-175
25-225 2.25 3.694 2-7/8 19
25-275 2.75 5.518 2-7/8 22
30-275 2.75 5.518 3-1/2 22
30-325 3.25 7.707 3-1/2 22
30-375 3.75 10.261 3-1/2 25
40-375 3.75 10.261 4 25

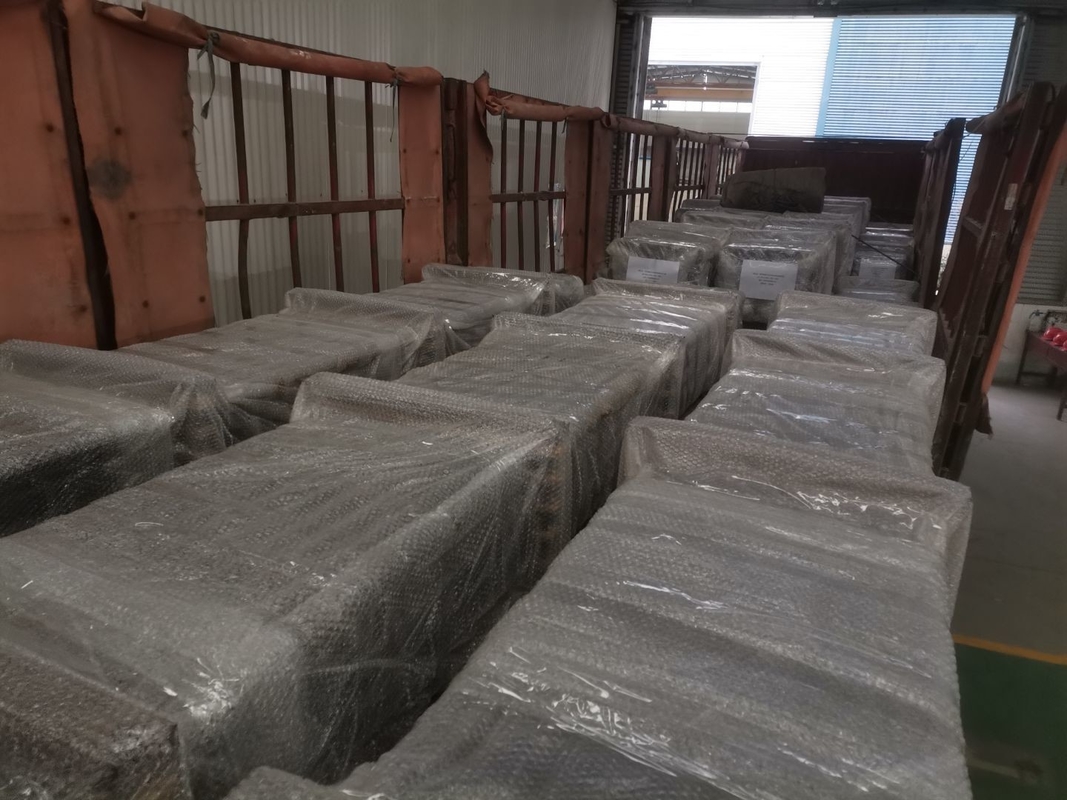

Inspection photo for downhole tubing pump:



Mechanical Bottom Anchor Well Pump Tubing Chrome Plated 0
