Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Tubing Pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SETS/MONTH
Pump Type: |
Tubing Pump |
Model 1: |
THBM |
Model 2: |
THBC |
Barrel Wall: |
Heavy Wall |
Barrel Material: |
Carbon Steel |
Pump Type: |
Tubing Pump |
Model 1: |
THBM |
Model 2: |
THBC |
Barrel Wall: |
Heavy Wall |
Barrel Material: |
Carbon Steel |
Stationary Heavy Wall Oil Production Well Pump Tubing
Stationary Heavy Wall Tubing Pump description:
The barrel of well tubing pump is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher.
In the process of production with tubing pump, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.
Tubing pump and spare parts strictly conform to API SPEC 11AX, and special pumps can be designed and manufactured such as heavy crude oil
pumps, sand-proof pumps and Gas-proof pumps according to the requirements of users. Key parts of the pumps can be made of materials with
strong corrosion-resistance and excellent mechanical properties conform to NACE stdMR-01-76 according to various well conditions.
THM pumptechnical parameters table:
| THM model | Pump OD (in) | Length of barrel(ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 20/25-106THM | Ø26.99 | ≦6 |
0.3-8.0 |
1.2-9.0 |
0.6-1.2 |
2-3/8”
2-7/8” |
CYB16
CYB19
CYB25 |
| 20/25-125THM | Ø31.75 | 2.1-10.4 | |||||
| 20/25-150THM | Ø38.10 | ||||||
| 20-175THM | Ø44.45 | ||||||
| 25-200THM | Ø50.80 | ||||||
| 25-225THM | Ø57.15 | ||||||
| 30-275THM | Ø69.85 | 3-1/2” | |||||
| 40-375THM | Ø95.25 | 4-1/2” |

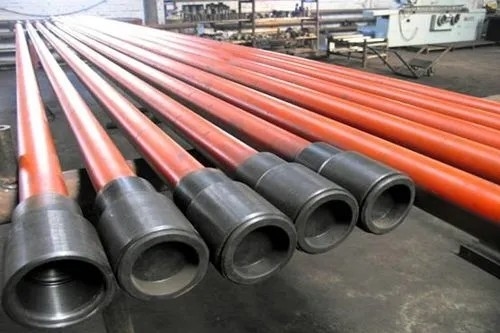

Photo for tubing pump delivery:
