Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Tubing pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Power Machine: |
Pumping Unit |
Feature: |
Strong Structure |
Industry: |
Oil Industry |
Pump Type: |
Tubing Pump |
Barrel Mateiral: |
Carbon Steel |
11AX No.: |
0061 |
Power Machine: |
Pumping Unit |
Feature: |
Strong Structure |
Industry: |
Oil Industry |
Pump Type: |
Tubing Pump |
Barrel Mateiral: |
Carbon Steel |
11AX No.: |
0061 |
Strong Structure Heavy Wall Barrel Well Pump Tubing
Strong structure heavy wall barrel well tubing pump description:
Well tubing pump type:
API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump
The well tubing rod pump plunger is directly connected to the sucker rod string, and may be tripped into and out the tubing with the barrel together with no need to pull out the tubing string, which can reduce maintenance time and downtime.
The life span of tubing can be prolonged by decreasing times of turning on and off the tubing thread and the time of working over is also shortened. The rod pump can be classified into two types of mechanical seating and cup seating. Also, it is divided into three types as RHA (stationary heavy well barrel top anchor rod pump), RHB (stationary heavy well barrel bottom anchor rod pump) and RHT (traveling heavy well barrel bottom anchor rod pump).
Well tubing pump features: Large oil production volume
Well tubing pump API parameters table:
| THM model | pump diameter(in) | Barrel length(ft) | Plunger length(ft) | stroke length(ft) |
Tubing size EUE(in) |
| 20-175THM | Ø44.45 | 7-34 | 1-26 | 4-29 | 2 3/8" |
| 25-225THM | Ø57.15 | 2 7/8" | |||
| 30-275THM | Ø69.85 | 3 1/2" | |||
| 40-375THM | Ø95.25 | 4 1/2" |

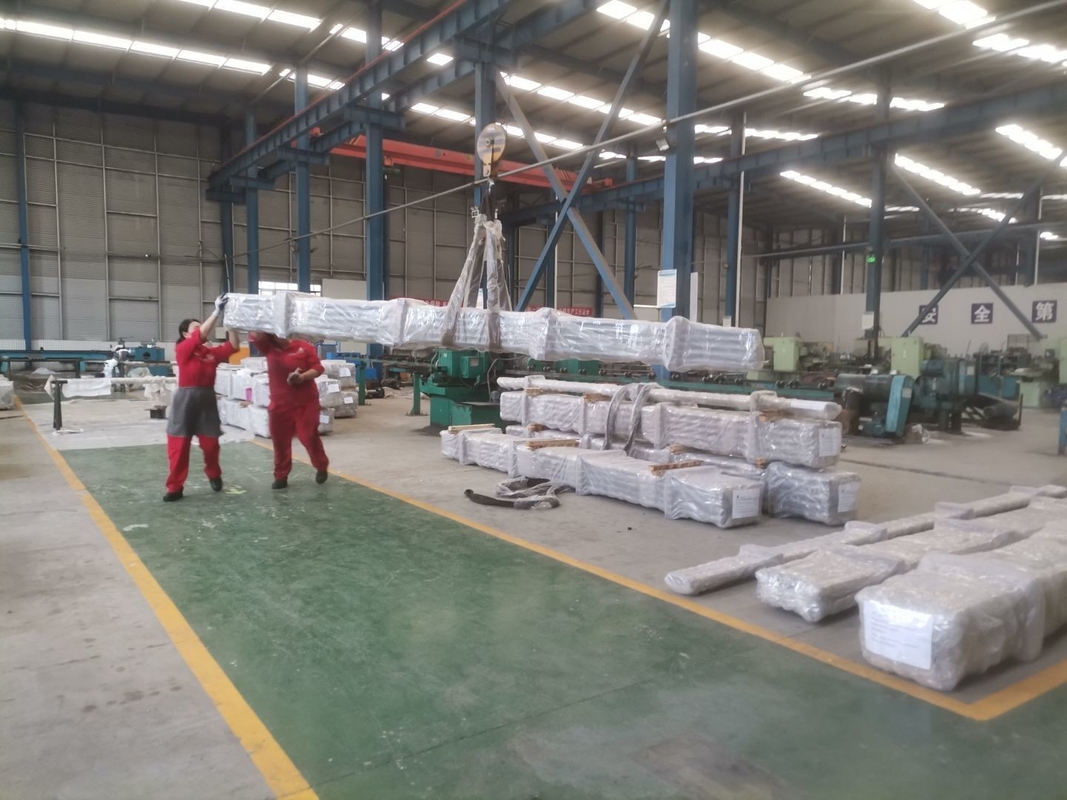

Well tubing pump loading for delivery:
