Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Tubing pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 50~60 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Pump Type: |
Downhole Pump |
Pump Name: |
Well Tubing Pump |
Tubing Pump Model: |
THBM And THBC |
Valve 1: |
Travelling Valve |
Valve 2: |
Standing Valve |
Valve Material: |
Tungsten Carbide In Usual |
Pump Type: |
Downhole Pump |
Pump Name: |
Well Tubing Pump |
Tubing Pump Model: |
THBM And THBC |
Valve 1: |
Travelling Valve |
Valve 2: |
Standing Valve |
Valve Material: |
Tungsten Carbide In Usual |
Travelling Valve And Standing Valve Well Tubing Pump
Travelling valve and standing valve well tubing pump description:
Tubing pump: Tubing, Heavy Wall Barrel, Tubing Pump
The pump barrel is anchored on the top by a holder. This type of rod pump is suitable for sand production well since the fluid discharged from the guide cage washes away the sand between tubing and the top of the pump. But the pump barrel is more subjected to inside pressure and tensile load caused by the fluid column, and the plunger clearance will intend to increase during up stroke so the top anchored pumps are not recommended in deep wells
This structure has the following advantages
1. When the rod pump is running, fluid discharged from the guide cage flushes sand sedimentation away
2.The standing valve at the bottom of the pump is apt to immerse in the well fluid, therefore, it is applicable to the well with low fluid level
3.The top anchor mode helps the pump to keep in free suspension state and provides with self-alignment effect, therefore, it is applicable to the deviated well
4. the pump barrel functions as a gas anchor, making these pumps suitable for gassy wells
5. Compared with the bottom anchor rod pumps, the pump is more suitable for oil wells with heavy oil.However, it is not suitable for deep oil wells because the internal pressure and tension caused by the fluid column is likely to cause the pump barrel to expand, and enlarges plunge clearance.
Features
1. The basic valve structure for tubing pump: travelling valve and standing valve
2. Double travelling valve or singal travelling valve
API specification of THM tubing pumps
| API THM model | Pump OD(in) | Barrel length(ft) | Plunger length(ft) | stroke length(ft) |
Tubing size EUE(in) |
Sucker rod size |
| 20-175THM | Ø44.45 | 7-34 | 1-26 | 4-29 | 2 3/8" |
5/8" 3/4" 1" |
| 25-225THM | Ø57.15 | 2 7/8" | ||||
| 30-275THM | Ø69.85 | 3 1/2" | ||||
| 40-375THM | Ø95.25 | 4 1/2" |

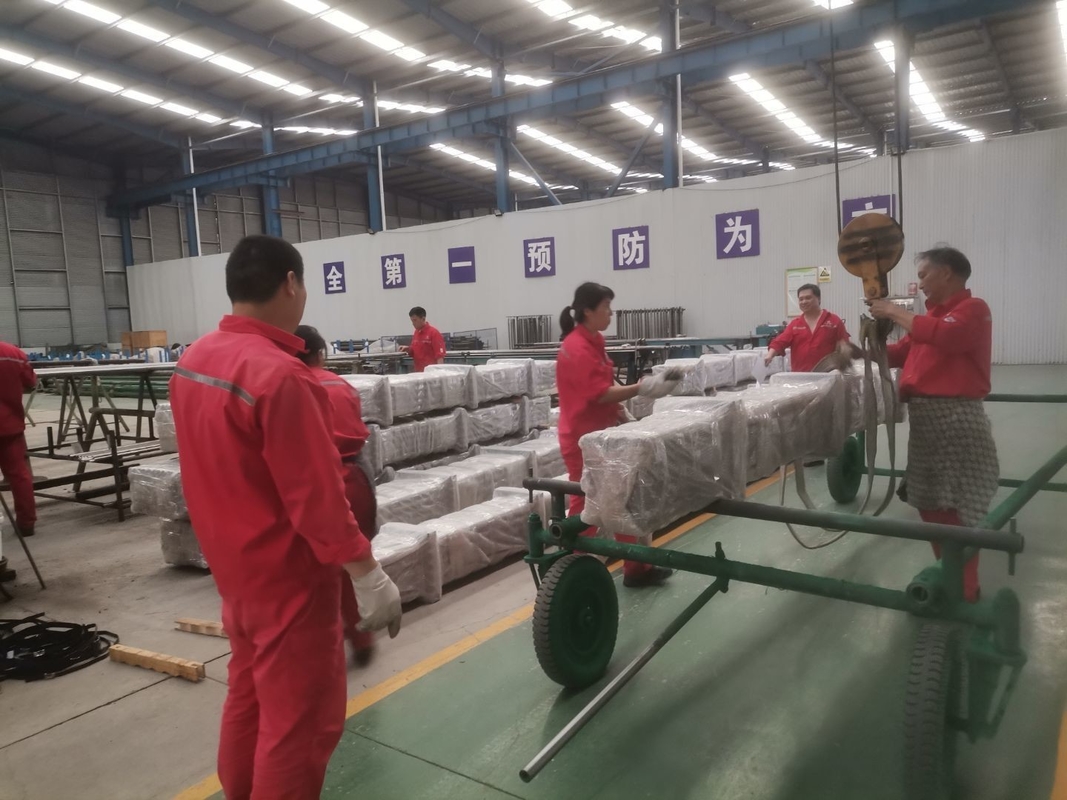

Tubing pump delivery photo:
