Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Tubing pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 50~60 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Name: |
Oil Well Sucker Rods |
Pump Name: |
Well Tubing Pump |
Tubing Pump Model: |
THBM And THBC |
Valve 1: |
Travelling Valve |
Valve 2: |
Standing Valve |
Size: |
44.45 Inch |
Name: |
Oil Well Sucker Rods |
Pump Name: |
Well Tubing Pump |
Tubing Pump Model: |
THBM And THBC |
Valve 1: |
Travelling Valve |
Valve 2: |
Standing Valve |
Size: |
44.45 Inch |
44.45 Inch Anchored Oil Well Sucker Rods With Travelling Valve
Introduction
The structure is simple but strong and durable.The price is low. Has a high fluid production in the same diametertubing.
Suitable for the deeper well.
Features
1. The basic valve structure for tubing pump: travelling valve and standing valve
2. Double travelling valve or singal travelling valve
API specification of THM tubing pumps
| API THM model | Pump OD(in) | Barrel length(ft) | Plunger length(ft) | stroke length(ft) |
Tubing size EUE(in) |
Sucker rod size |
| 20-175THM | Ø44.45 | 7-34 | 1-26 | 4-29 | 2 3/8" |
5/8" 3/4" 1" |
| 25-225THM | Ø57.15 | 2 7/8" | ||||
| 30-275THM | Ø69.85 | 3 1/2" | ||||
| 40-375THM | Ø95.25 | 4 1/2" |

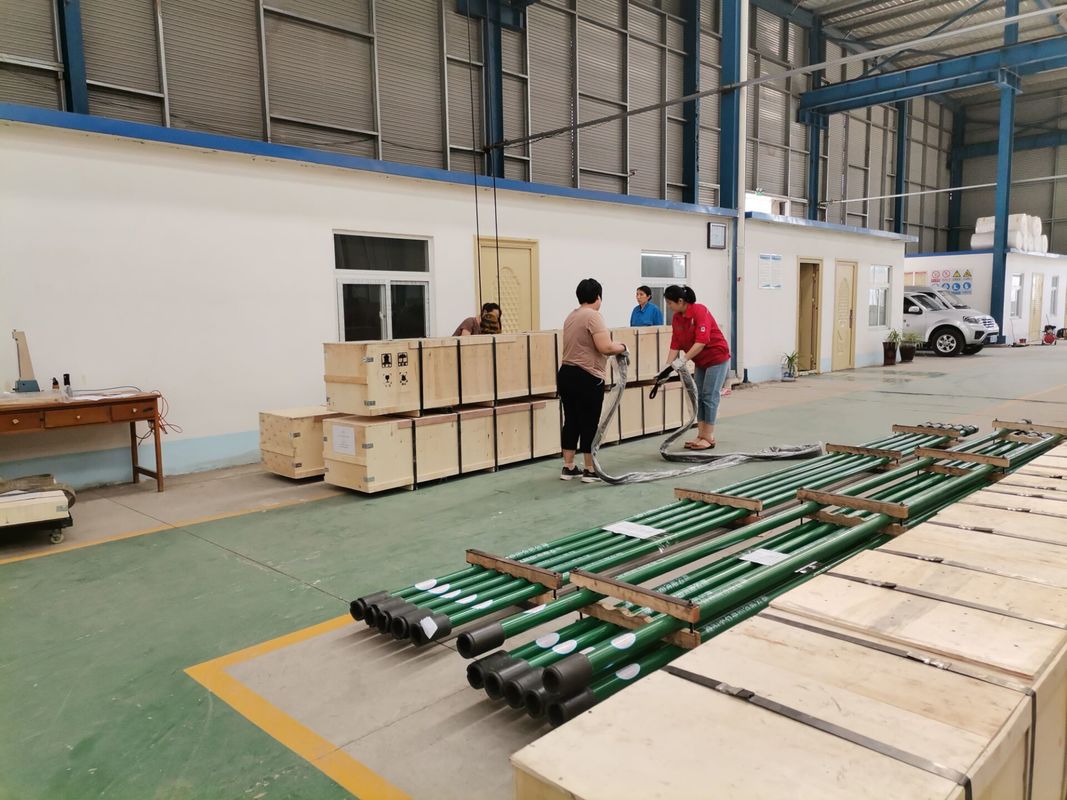

Tubing pump delivery photo:
