Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Tubing pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Name: |
Well Pump Tubing |
Feature: |
Strong Structure |
Industry: |
Oil Industry |
Pump Type: |
Tubing Pump |
Barrel Mateiral: |
Carbon Steel |
11AX No.: |
0061 |
Name: |
Well Pump Tubing |
Feature: |
Strong Structure |
Industry: |
Oil Industry |
Pump Type: |
Tubing Pump |
Barrel Mateiral: |
Carbon Steel |
11AX No.: |
0061 |
Oil Industry API Standard Well Pump Tubing Heavy Wall Barrel
Well Pump Tubing is installed by running in hole with the tubing string. Depending on the size and style of this pump, the plunger assembly is installed with the rod string or is already inside the pump with an On/Off Tool. In conjunction with the size and style of this pump, the standing valve assembly is either installed as a retrievable and is installed similarly to the Insert Pumps, or it is stationary and is already installed with the pump.
Well tubing pump type:
API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump
Well tubing pump features: Large oil production volume
Well tubing pump API parameters table:
| THM model | pump diameter(in) | Barrel length(ft) | Plunger length(ft) | stroke length(ft) |
Tubing size EUE(in) |
| 20-175THM | Ø44.45 | 7-34 | 1-26 | 4-29 | 2 3/8" |
| 25-225THM | Ø57.15 | 2 7/8" | |||
| 30-275THM | Ø69.85 | 3 1/2" | |||
| 40-375THM | Ø95.25 | 4 1/2" |

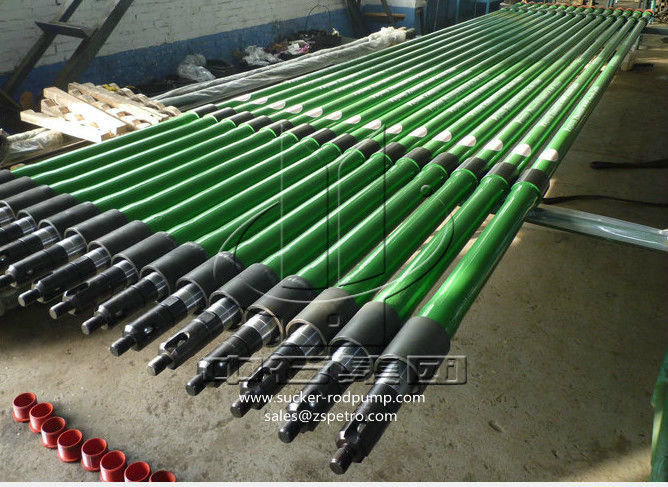

Well tubing pump loading for delivery:
