Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Type: |
Torque Anchor |
Material: |
Alloy Steel |
Connection: |
2 3/8", 2 7/8", 3 1/2", 4 1/2" EU/NU |
Processing Type: |
Forging |
Bend Radius: |
2 In |
Burst Pressure: |
600 Psi |
Color: |
Silver |
Connection Size: |
1/2in |
Connection Type: |
Male |
End Size: |
1/2in |
Type: |
Torque Anchor |
Material: |
Alloy Steel |
Connection: |
2 3/8", 2 7/8", 3 1/2", 4 1/2" EU/NU |
Processing Type: |
Forging |
Bend Radius: |
2 In |
Burst Pressure: |
600 Psi |
Color: |
Silver |
Connection Size: |
1/2in |
Connection Type: |
Male |
End Size: |
1/2in |

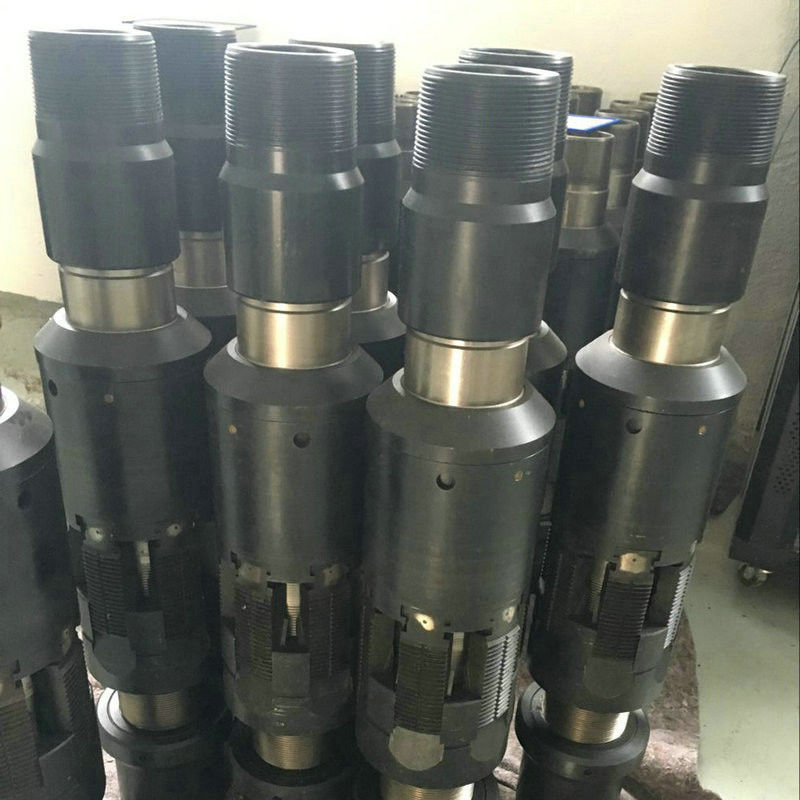

Description of tubing Anchor:
The Tubing Anchor Catcher is a versatile tool that serves as both a tubing anchor to maintain tension in the tubing string and as a catcher to prevent fallen pipe from reaching the bottom of the well.
To install and set the Tubing Anchor Catcher, follow these steps:
1. Place the anchor within the tubing string, either above or below the pump. Rotate the tubing counterclockwise (to the left) to set the anchor catcher in place.
2. Apply slight compression to compress the tubing slightly, then rotate it clockwise (to
the right). This retracts the cones from their slips, allowing them to move back into
the housing.
Features:
- Left rotation sets and right rotation releases.
- Emergency shear release mechanism for straight pull operation.
- Enhances pump efficiency.
- Reduces maintenance and downtime caused by wear on tubing or sucker rods.
- Interchangeable parts compatible with other manufacturers' equipment.
By utilizing this Tubing Anchor Catcher, you can effectively maintain tension in your tubing string while preventing dropped pipes from sinking further down into your well.
| Casing OD(inch) |
Setting Range | Tool OD(inch) |
Tool ID(inch) |
Connection Thread | |
| Min ID(mm) | Max ID(mm) | ||||
| 4 1/2 | 3.920 | 4.090 | 3.75 | 1.93 | 2-3/8" EU |
| 5 | 4.276 | 4.494 | 4.00 | ||
| 5 1/2 | 4.670 | 5.044 | 4.50 | 2.00 | |
| 5 1/2 | 4.670 | 5.044 | 4.50 | 2.37 | 2-7/8" EU |
| 6 5/8 | 5.938 | 6.135 | 5.50 | ||
| 6 5/8 7 |
5.920 | 6.456 | 5.50 | ||
| 7 7 5/8 |
6.413 | 7.125 | 5.50 | ||
Specification of tubing anchor:
| Casing size (inch) | Anchor body OD (mm) | Actual anchor OD (mm) | Torque anchor ID (mm) | Connections (inch) |
| 4-1/2” | 92.2 | 92.2 | 50.8 | 2-3/8”EU |
| 5-1/2” | 112.8 | 108.0 | 62.0 | 2-7/8”EU |
| 6-5/8” | 138.4 | 133.4 | 62.0 | 2-7/8”EU |
| 7” | 148 | 143.0 | 76.0 | 3-1/2”EU |
| 9-5/8” | 190 | 209.6 | 100.5 | 4-1/2”EU |
